KV331's SynthMaster One
- December 12, 2017
- by Blayne Stone
- Product Intelligence Report
Built on the legendary SynthMaster engine, SynthMaster One is an easy to use wavetable synth. Including 800 inspiring presets and a simple layout, SynthMaster One is a wavetable synthesizer with an intuitive workflow. With dual wavetable oscillators, SynthMaster One is a beginner-friendly but yet very powerful synthesizer.
Getting into it

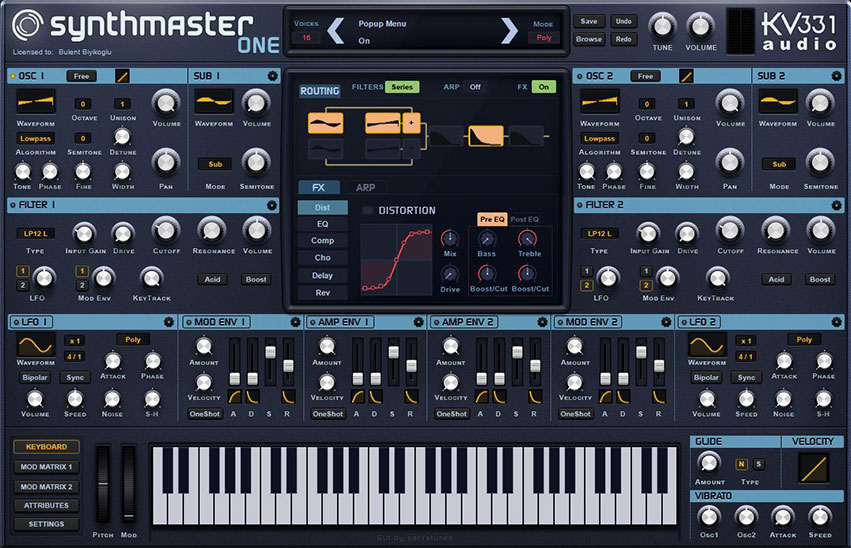

SynthMaster One offers a wide range of features with an interface that keeps everything upfront and available for tweaking at all times. Including the ability to import waveforms, wavetables and MIDI files; SynthMaster One is an affordable, advanced synthesizer equipped to fill the needs of music creators at every level. SynthMaster One’s architecture is intuitive and easy to navigate, but boasts enough flexibility and depth to deliver a limitless range of electronic sounds. It consists of two Oscillators with associate Sub Oscillators, the mixed outputs of which feed into two filters, which in turn output to one or two envelope modulated amplifiers, followed by a series of master FX. SynthMaster One’s two stereo oscillators are capable of loading standard analogue-style waveforms, as well as sampled single-cycle waveforms and wavetables. SynthMaster One has the ability to emulate desirable analogue synth sounds. For the price point, SynthMaster One is an extremely complex and capable plug-in, sure to satisfy any music creator that enjoys utilizing synthesizers in their work flow.The Oscillators
The two oscillators each offer the usual analogue waveshapes – Sine, Triangle, Square, Sawtooth and Pulse. Where SynthMaster One’s oscillators really excel, is through their elaborate digital waveforms and wavetables. SynthMaster One includes 150 pre-made wavetables captured from hardware synths by Moog, Roland, Korg and others, in addition to enabling the user to import their own. Each oscillator has a sub-oscillator associated with it. The sub-oscillators are unique because they are not the usual lower-octave sine or square wave, as in most other synths. The sub-oscillators offer many of the same single-cycle waveforms as their primaries, with the inclusion of several noise samples. In addition to this, the tuning range covers approximately five octaves in either direction, so its possible to apply them as a second oscillator for many applications. The sub-oscillators also have the ability to function as modulating oscillators for the primary oscillator, with options for FM, AM, ring mod and phase modulation.The Arpeggiator/Sequencer
SynthMaster One’s arpeggiate mode lets you design your own custom arpeggios, setting successive increments/decrements within the stack of notes defined by MIDI note input and the Range parameter. SynthMaster One’s arpeggiator/sequencer works as a straight-up arp, with all standard directional modes present. You get up to four octaves of range, up to 16 volume-adjustable steps, the gamut of playback speed note values from 1/32 to 2/1 including dotted and triplet options, swing timing, and gate time controlled by extending/shortening individual steps in the bar display or twisting the duration knob. In sequence mode, you can edit, record or import monophonic or polyphonic sequences. Sequence mode is a conventional piano roll step sequencer boasting up to four notes of polyphony and again, per-step slide and hold. You can draw notes in by hand or activate record mode and play them in step by step, either at their played velocities or at fixed 127.
Filters in synthesizers are used to boost/cut certain frequency ranges, depending on their type. SynthMaster One has two zero delay feedback ‘analogue’ filters with four type categories: Ladder, Diode Ladder, State Variable, Bite. All four categories of filters have the following common parameters: Cutoff, Resonance, Volume, Input Gain, Drive, KeyTrack, LFO, Mod Env, Acid and Boost. Input gain and drive knobs push and warm up the signal, while the acid and boost buttons connect cutoff and resonance. The filters are configurable in three routings, each one fed by its same-numbered oscillator; both receiving the mixed output of both oscillators; or with both oscillators feeding filter 1, which then feeds filter 2. The filter types are all based on the standard multimode options – lowpass, highpass, bandpass and notch."Effects
With six insert slots drawing on a roster of 11 effects, SynthMaster One has plenty signal processing and polishing scope. The signal flow through the FX section runs from the top of the ‘rack’ to the bottom. The effects include: distortion, LoFi, ensemble, phaser, equalizer, vocoder, delay, chorus, tremolo, reverb and compressor. The distortion effect consists of a 2-band shelving EQ followed by a distortion stage, followed by another 2-band shelving EQ. The LoFi effect applies bit depth and sample rate reduction (through sample and hold). The ensemble effect generates up to six ‘unison’ voices in parallel at different delay modulations. A 4-, 8-, 12-, 16-stage analogue modeled phaser. The feedback parameter feeds the phaser output into its input. A 6-band EQ, editable using the knobs and/or by dragging the filter nodes in the display. SynthMaster One’s vocoder consists of 16 analysis and 16 synthesis filters. To use SynthMaster One as a vocoder, it needs to be loaded as a MIDI-controlled audio effect. A stereo delay effect with built-in 2 band EQ. Use the 2-band EQ to filter the delayed outputs, and control the stereo imaging of the delay outputs with the width and pan parameters. The chorus effect adds time variable delays to its stereo inputs. The tremolo effect modulates the amplitude of its stereo inputs based on the movement of an internal stereo LFO. SynthMaster One features a powerful reverb effect, used to simulate rooms and spaces. The compressor effect is used for dynamic gain reduction, automatically lowering the output level in response to changes in input signal gain.
- 800 inspiring factory presets from a world class team of sound designers.
- Semi-Modular architecture
- 16 step arpeggiator/sequencer
- Wavetable synthesis accompanied by a rich wavetable library
- Stereo Oscillators with up to 16 voices unison
- Zero delay feedback filters
- Rich set of effects
- Microtuning: SynthMaster supports Scala tuning, so tuning can be set either for each preset or globally by loading from a Scala tuning file

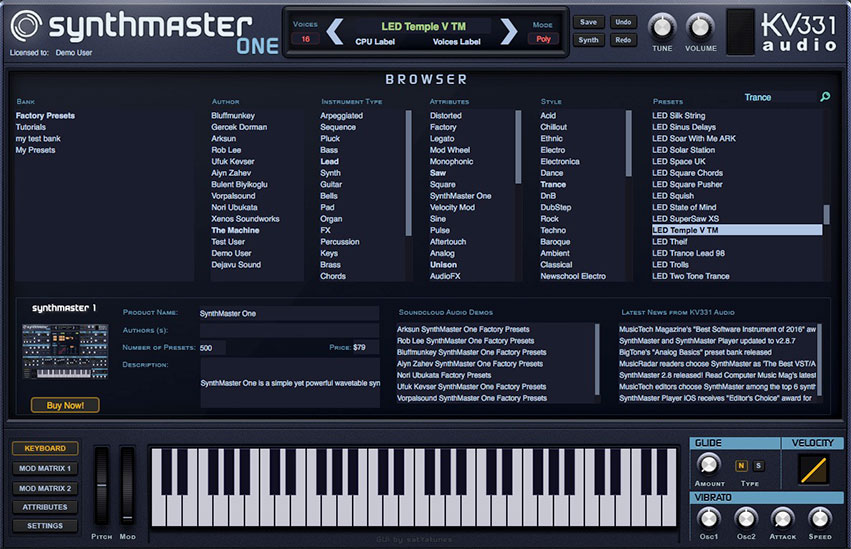

- Comprehensive preset browser with separate search criteria for instrument type, preset attributes, music style or preset author
- Importing MIDI patters as arpeggiator sequence
- SynthMaster One is available on both Microsoft and Mac operating systems, in VST, AU and AAX formats.
My Favourite things about SynthMaster One

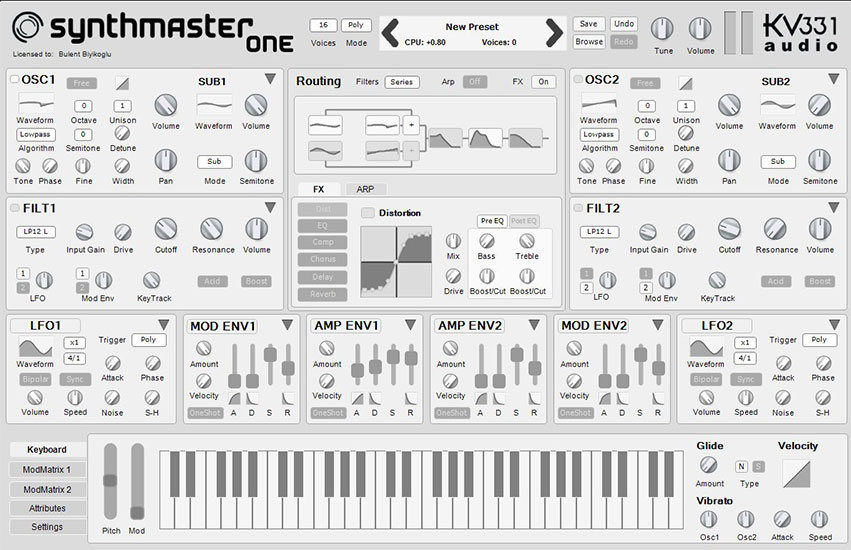

- Single Screen Layout. No tabs or pages. Really easy to keep track of the sound you are working with. Allowing the process of creation to not be interupted.
- The modulation envelopes: you can change the curve of the attack, decay, and release. This is very powerful because it allows you to go from an exponential to a linear to a logarithmic curve just by dragging upwards and downwards on the envelope.

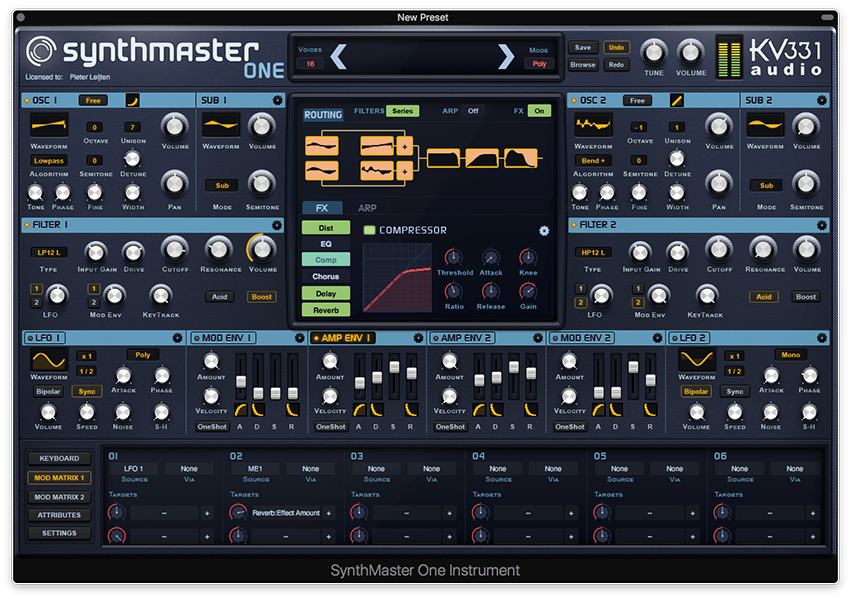

- Modulation targets: because you have got so many modulation targets there is a lot of things you can do to evolve and change the sound over time.
- Drag and drop modulation. Very easy to set LFO and envelope parameters to oscillators through a simple to use drag and drop system.
- The cinematic factory sounds. One of my loves is making ambient music. I found that SynthMaster One's factory presets were incredible for developing a starting point to design incredible sounding soundscapes and ambiences.
- The arpeggiator: after first using SynthMaster One, I was not a fan of the arpeggiator. My main reason for not being a fan was because it was not a work flow I was use to nor did I find it easy to implement in to my current work flow. I was unable to create the sound I was hearing in my head. However, after a little bit more time with the arp function in SynthMaster, I began to get the hang of it and started creating some really cool sounds. After becoming familiar with the recording function within the arpeggiator, I am a big fan of it. I really enjoy creating arpeggiated bass lines. The arpeggiator can also create intricate soundscapes. I personally recommending finding an arpeggiated preset that you enjoy and work with it as the foundation to your own unique sound.
Most of my musical experience comes from playing live instruments or working with samples. I play trumpet, bass, paino, and guitar. My first exposure to a digital synthesizer was when I downloaded a version of Native Instrument’s Massive. I got Massive 8 years ago when I first began producing on Fruity Loops Studio. Since then, I have used synthesizers such as FM8, Sylenth and Serum to name a few. My first impression of SynthMaster One is that the GUI is extremely intuitive. The reason for this being, the plug-in’s single screen layout. There is no need to have to switch between tabs or pages on the plug-in creating a very easy to use interface for the user. I have never used SynthMaster One’s big brother version, SynthMaster 2.8; however, through research I understand that the difference is not that dramatic. That is to say, KV331, feature wise, left the two plug-ins relatively similar. It was a joy to test out the SynthMaster One, I found it added a new dynamic to my music and did not stop me from being able to get all my ideas out. KV331 has released a plethora of quick and helpful tutorials that will help you become a master of the SynthMaster One’s interface in no time. I definitely recommend this Synth, for the price point you can not go wrong.
